k3d Up and Running Tutorial for Linux machines

Torben Dury · January 24, 2022

From zero to local Kubernetes development in 10 minutes. Promised!

Get started with local Kubernetes clusters to enhance development speed and follow the step-by-step tutorial to even use local ingress DNS.

Introduction to k3d

k3d is a containerized lightweight Kubernetes distro, based on k3s.

k3s is a certified Kubernetes distribution which was originally built for the IoT / Edge computing segment. IoT devices naturally have less power than workstations and in some use cases still need to be able to be clustered with Kubernetes. This is where k3s comes in handy.

We will use k3d to spin up a local multi-node HA Kubernetes cluster, including a sample nginx Deployment and some local configuration snippets to use super cool local DNS like nginx.k3d.localhost.

Ready? Let’s get started!

Machine requirements

This tutorial was written for Linux machines (Ubuntu, in my case). In later configuration, you might need to change some configs according to your system you’re on.

Basically, you do not need anything else installed beforehand but docker. Get Docker here. If you hate the new Docker ToS, any other container runtime environment (e.g. podman) will do the trick, too.


Since I want this tutorial to still be valid in a month, we’ll default to the latest release here.

k3d comes with a nice wrapper CLI which will help us deploying local Kubernetes clusters in seconds. Get it here:

  $ wget -q -O install.sh https://raw.githubusercontent.com/rancher/k3d/main/install.sh
  $ chmod +x install.sh
  $ ./install.sh

If you don’t have wget installed on your machine, you can also download the installer script with curl.

After executing the installer script, verify your installation by typing:

  k3d --help

Now we’re ready to rumble!

Your first cluster - done right

You can always quickly create clusters with using the wrapper CLI flags and arguments. But we want to create reproducable environments, and maybe even want to share them with our team, right? k3d understands this and is able to parse YAML configs. Let’s start with our first simple configuration:

apiVersion: k3d.io/v1alpha3
kind: Simple
name: local
servers: 1
agents: 2
image: rancher/k3s:v1.20.4-k3s1
  - port: 8080:80
      - loadbalancer
    wait: true
    updateDefaultKubeconfig: true
    switchCurrentContext: true

The first three lines are needed in every k3d cluster configuration. name is the name which k3d will give to your cluster. In your kubeconfig, the clustername will appear as k3d-[name]. We configure the number of master nodes with servers and the number of worker nodes with agents. This config uses a k3s image with includes Kubernetes v1.20.4.

k3d gives you a traefik loadbalancer shipping with batteries, and we want the inner port 80 to be reachable on our machine on 8080. Thus, we’ll be able to call our Kubernetes applications on http://localhost:8080.

At the end, there’s options telling k3d to

  • wait until the cluster is ready (which takes about 15-30 seconds!)
  • update our /.kube/config file with a new context pointing to our cluster
  • switch the current kubectl context

These are only some convenience features that can be turned off.

Save the above configuration file as config.yml and create your cluster like this:

  k3d cluster create --config config.yml

As already mentioned, this will be done blazingly fast. If you ever worked with minikube or kind, you’ll instantly love it.

Pro tip: Do you need more nodes fast? This can be done while your cluster is running!

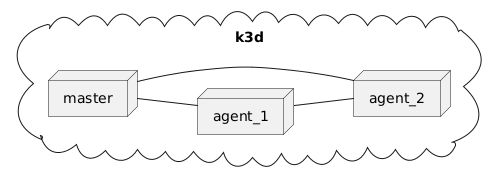

k3d overview

And…basically, we’re done! Have fun with your cluster! - Or read on and get application manifests and a tutorial on how to forward traffic to your cluster locally with DNS!

Forwarding traffic

Above, I told you that your cluster is reachable via http://localhost:8080 using the given configuration. That gets lame quite quickly, especially when you’re running multiple applications. Let’s change that!

Host configuration

We want to make k3d.localhost available as a domain for our traefik ingress. This is done quickly:

  sudo echo " k3d.localhost" >> /etc/hosts

Now we can access the cluster using http://k3d.localhost:8080/. The port is kinda annoying, isn’t it?

You have two options.

  1. Change the forwarded port in the cluster configuration to 80 - which did not work in my case.
  2. Reverse proxy requests to http://k3d.localhost:80/ to http://k3d.localhost:8080/.

I’ll quickly show you the second option.

Reverse proxying traffic (also useful for HTTPS redirects)

This can easily be done with using nginx locally. I already have one running, but if you don’t, that’s not a problem:

  $ sudo apt purge apache2 && \
      sudo apt update && \
      sudo apt upgrade -y && \
      sudo apt install -y nginx && \
      sudo systemctl start nginx

Now replace the default config (normally located at /etc/nginx/sites-enabled/default) with your own:

server {
        listen 80;

        server_name "^.*k3d\.localhost$";

        location / {
                proxy_set_header Connection "";
                proxy_set_header X-Forwarded-For $host;
                proxy_set_header X-Forwarded-Proto $scheme;
                proxy_set_header Connection `upgrade´;
                proxy_set_header Host $host;

This will forward every traffic containing k3d.localhost in the domain to our k3d cluster.

Reload nginx and test it!

  $ sudo nginx -t && \
      sudo systemctl reload nginx
  $ curl -vL http://k3d.localhost

This should show you the default ingress 404 page.

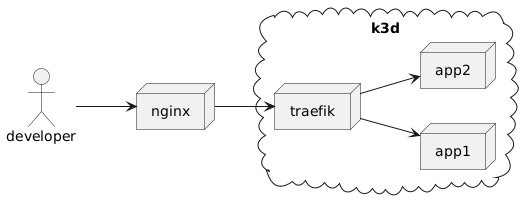

Traffic is directed like this:

Traffic direction with nginx reverse proxying

If you want to read more on nginx reverse-proxying, this post might be interesting for you.

Example application to host

You’ve made it this far? Great! Let me provide you the last YAML for today to host your first high-available sample application.

We will deploy 4 instances of nginx which will, when called, return Hello from k3d!.

To accomplish this, we will need a Deployment, a Service, an Ingress and a ConfigMap which are all describe below.

apiVersion: networking.k8s.io/v1
kind: Ingress
  name: nginx
  namespace: default
    - host: nginx.k3d.localhost
          - path: /
            pathType: ImplementationSpecific
                name: nginx
                  number: 80
apiVersion: v1
kind: Service
  name: nginx
  namespace: default
    app: nginx
  type: ClusterIP
    - name: nginx
      protocol: TCP
      port: 80
      targetPort: 80
apiVersion: v1
kind: ConfigMap
  name: nginx
  namespace: default
  nginx.conf: |
    user nginx;
    worker_processes  3;
    error_log  /dev/stdout info;
    events {
      worker_connections  10240;
    http {
      log_format  main
      access_log /dev/stdout;
      server {
          listen       80;
          server_name  _;
          location / {
              root   /var/www/html;
              add_header X-NGINX-HOST $hostname;
              index  index.html index.htm;
  index.html: |
      Hello from k3d!
apiVersion: apps/v1
kind: Deployment
  name: nginx
  namespace: default
    app: nginx
      app: nginx
  replicas: 4
      maxSurge: 50%
      maxUnavailable: 50%
    type: RollingUpdate
        app: nginx
        - name: nginx
          image: nginx:stable-alpine
              cpu: 100m
              memory: 100Mi
              cpu: 100m
              memory: 100Mi
              port: 80
            initialDelaySeconds: 5
            timeoutSeconds: 5
            successThreshold: 1
            failureThreshold: 3
            periodSeconds: 10
              port: 80
            initialDelaySeconds: 5
            timeoutSeconds: 2
            successThreshold: 1
            failureThreshold: 3
            periodSeconds: 10
            - containerPort: 80
              name: nginx
            - mountPath: /etc/nginx
              readOnly: true
              name: nginx-config
            - mountPath: /var/www/html
              readOnly: true
              name: nginx-html
            - mountPath: /var/log/nginx
              name: log
      restartPolicy: Always
        - name: nginx-config
            name: nginx
              - key: nginx.conf
                path: nginx.conf
        - name: nginx-html
            name: nginx
              - key: index.html
                path: index.html
        - name: log
          emptyDir: {}

Save those YAML files and apply them with kubectl apply -f [my files].yaml.

After that, try to reach your nginx!

  curl -vL http://nginx.k3d.localhost


In this post, you’ve learned how to:

  • Install the k3d CLI
  • Create your first local Kubernetes cluster
  • Forward traffic with cool local DNS to your applications
  • Deploy your first sample application

I hope you enjoyed it! If you have any questions, don’t hesitate to reach out to me. Happy coding!
